IEC60068-2-1 High And Low Temperature Rapid Change Test Chamber 150L

Name: IEC6006821 High And Low Temperature Rapid Change Test Chamber 150L
Brand: Sinuo
Price: 1 USD

Wholesale IEC60068-2-1 High And Low Temperature Rapid Change Test Chamber 150L from china suppliers

Brand Name : Sinuo

Model Number : SN885-150L

Certification : Calibration Certificate(Cost Additional )

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 45 Days

Packaging Details : Plywood Case

Temperature Range : -40℃ to +150℃

Temperature Fluctuation : ≤±1.0℃

Temperature Deviation : ±2.0℃

Temperature Uniformity : ≤2.0℃

Internal Dimensions : W500×H600×D500mm

External Dimensions : W950×H1870×D1500mm

Volume : 150L

Weight : Approximately 565kg

Contact Now

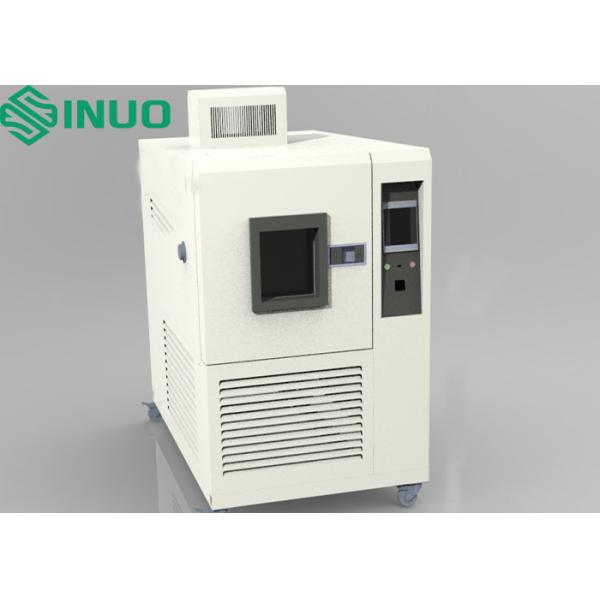

High and low temperature rapid change test chamber

Product information:

This High and low temperature rapid change test chamber is designed and manufactured according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-78 and IEC60068-2-30.
It is used to process cold, heat, humidity and dryness testing of raw materials and devices such as Parts and materials for electronic appliances, food, automobiles, rubber and plastic materials, metals and other products, such as optical fiber, LCD, crystal, inductor, PCB, battery, computer, mobile phone, rubber, plastic, etc. The purpose is to confirm the reliability of storage, transportation and use of products under high and low temperature rapid alternating humid heat environment.

Technical parameter:

Test Environment Conditions	· Ambient temperature: 5~35°C · Relative humidity: ≤85% RH · Air pressure: (86~106) kPa
Testing Method	Temperature test equipment Wet heat test equipment (for wet heat type only)
Temperature Range	-40℃~+150℃
Temperature Fluctuation	≤±1.0℃ (≤±0.5℃, as per GB/T5170-2008 specification)
Temperature Deviation	±2.0℃
Temperature Uniformity	≤2.0℃
Temperature Rise Time	-40°C to +150°C, linear rate ≥ 15°C/min (no load)
Temperature Drop Time	+150°C to -40°C, linear rate ≥ 15°C/min (no load)
Controller Model	7-inch
Operating Mode	Program mode, fixed value mode
Setting Method	English menu, touch input
Setting Range	Temperature: Adjusted according to the device's operating temperature range (Upper limit +5℃, Lower limit -5℃)
Display Resolution	· Temperature: 0.01℃ · Time: 0.01 minutes
Input	PT100 thermistor (platinum resistance/voltage/current, etc., as required by the device)
Control Method	Temperature uses anti-integral-saturation PID with auto-tuning function

Structural Systems:

Insulation Enclosure Structure	Outer Wall Material: 1.2mm double-sided electrolytic plate, surface spray-painted Inner Wall Material: 1.0mm stainless steel plate SUS304 Box Insulation Material: Rigid polyurethane foam + rock wool Door Insulation Material: Rock wool
Air Regulation Channel	Axial Flow Fans: 2 unitsHeaters, Evaporator (also functions as dehumidifier),Water Drainage and Supply Ports,Dry Bulb,Temperature Sensor For Wet Heat Type: Includes humidifier, dry-burn protection, wet bulb temperature sensor
Standard Configuration of Test Chamber	Observation Window: Transparent electric heat film, double-glazed tempered glass (1 unit, located on the door) Visible Area: W430mm × H550mm (including lighting and obstruction areas, as shown in the device outline diagram) Lead Hole: φ50mm (1 unit on each side of the box) Sample Rack: Stainless steel, 2-tier, load capacity (evenly distributed): 20kg per tier Lighting: 7W/DC24V (1 unit) Mobile Casters: 4 units
Door	Single-opening Hinged Door: Left hinge, right handle Includes Observation Window, Lighting, and Defogging Heater for Window/Frame
Control Panel	Temperature control display screen Over-temperature protection setting device Emergency stop switch Operation indicator light Fault indicator light Buzzer
Mechanical Room	Includes: Refrigeration unit, drainage system, fan, power distribution control cabinet,Humidification and humidity measurement control devices
Power Distribution Control Cabinet	Cooling fan Power distribution board RS-485 physical interface Main power circuit breaker
Heaters	Material: 316 stainless steel armored heating element Control Method: Non-contact pulse width modulation, SSR (Solid-State Relay)
