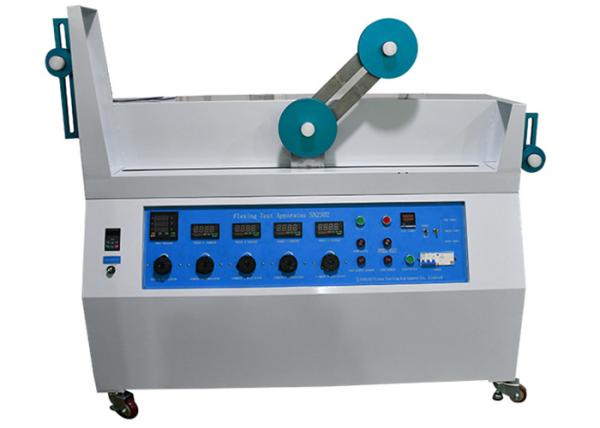

IEC 60245-1 Torvature Testing Machine 1 0.33m/S For Finished Flexible Cables

Name: IEC 602451 Torvature Testing Machine 1 033mS For Finished Flexible Cables
Brand: Sinuo
Price: 1 USD

Wholesale IEC 60245-1 Torvature Testing Machine 1 0.33m/S For Finished Flexible Cables from china suppliers

Brand Name : Sinuo

Model Number : SN2302

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 Sets Per Month

Delivery Time : 30 days

Packaging Details : Plywood

Load Current : 0.5~25A adjustable

Testing Distance : 1000±20mm

Load Voltage : L-L 10~400V adjustable

Suitable Cores : 2-18

Applied Standard : IEC 60227.2, IEC 60245.2, etc.

Test Station : Single station

Applied UUT : Rubber plastic wires and cables

Testing Speed : 0.33m/S

Contact Now

IEC60245-1 Torvature Testing Machine 1 0.33m/S For Finished Flexible Cables

Technical Characteristics:

Power Supply	3 phase 5 wires 220VAC/ 60 Hz or 380V/50Hz
Load Current	0.5~25A, adjustable
Load Voltage	Line-to-line voltage 10~400V adjustable
Testing speed	0.33m/s
Testing distance	1000±20mm
Suitable cores	2-18
Nominal cross-sectional area	0.2~4mm²
Diameter of pulleys	60, 80, 120, 160, 200mm
Test weights	20.5kg with hook, 20.5kg with hole, 61kg with hole, 26kg with hook

Equipment overview:

This test instrument can meet the test requirements of domestic and international standards and can be widely used. It has a precision digital meter, so it can accurately measure smaller or larger current voltages. The pulley replacement method is simple and convenient. The test equipment adopts chain drive mechanism with stable performance and low noise.

The tester is designed and manufactured in accordance with IEC 60227.2 Article 3.1, Figure 1, IEC 60245.2 Article 3.1, Figure 1, IEC60245-1 Article 5.6.3.1 and other standards. It meets the requirements of the relevant standards for mechanical strength bending test of rubber-plastic wires and cables. This test does not apply to flexible cables with a nominal cross-sectional area of the core greater than 4mm2 , and cables with more than 18 cores and more than two concentric layers.

How to installand adjustof the pulleys?

Select the appropriate pulley according to the diameter of the test wire/cable and the number of wire/cable cores.
Installation: Loosen and remove retaining nut, pull out pulley, replace pulley, install retaining nut and tighten.
Adjustment: Release the screws of 1, 2, A, B pulleys, then adjust pulleys’ positions, to make segments of the sample are horizontal and parallel to each others. Shown as below pictures:
